Description

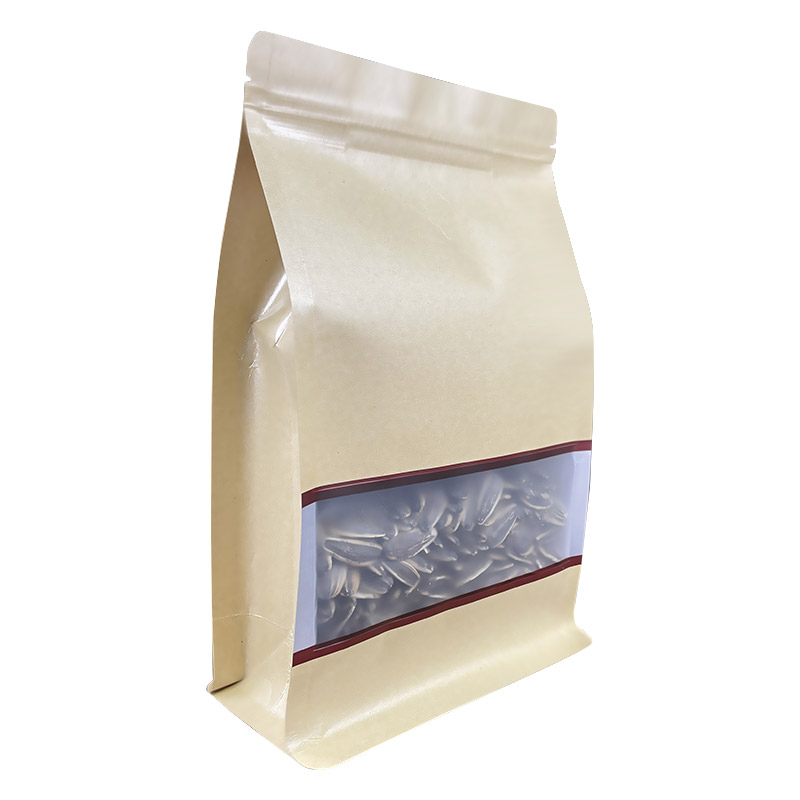

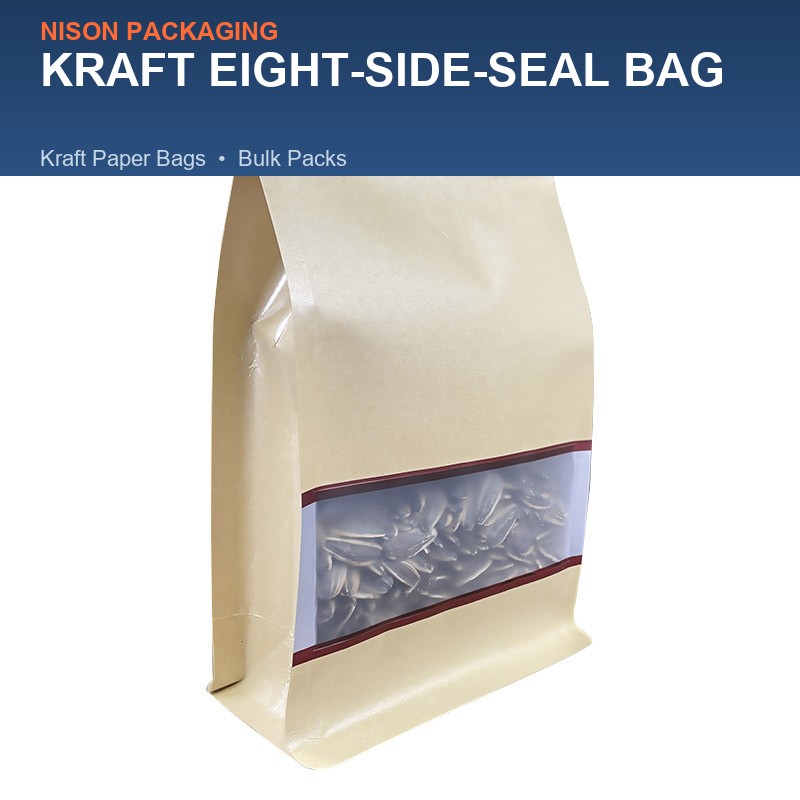

A kraft stand-up pouch with a horizontal clear window across the lower front, framed top and bottom by brown strips, and an aluminised film lining inside. The window shows the product as itself — coffee beans, sunflower seeds, nuts, dried fruit, tea — and the silver lining behind it reflects light back through the opening, so the pack reads bright rather than flat. The eight-side seal gives the bag a rectangular base and two side gussets: it stands square on a shelf and holds its shape as it empties.
What the window band and the brown frame do
The window is a band, not a large cut-out. It sits across the lower third of the front, roughly where the product settles after filling, which leaves the upper front panel unbroken. That upper panel is the part a shopper reads first and the part that takes print best. The brown strips above and below the window come as part of the stock design, so the pack already looks finished before you add anything: leave the frame as the only decoration, or print a logo and product name on the kraft above it and let the frame act as a rule between the two.
Kraft outside, aluminised film inside
Paper on its own does not hold aroma or block oxygen. This bag solves that with a metallised film lining bonded to the kraft — the paper gives the natural outside, the film does the barrier work. Against a clear or plain kraft pouch, the aluminised layer cuts light transmission and slows the aroma loss that makes nuts go stale and coffee go flat. It is a working retail barrier for dry goods sold over a few months. It is not a full aluminium foil laminate, so for long sea freight or a twelve-month shelf life ask us for the foil structure instead; our material comparison sets out the difference in barrier and cost.
Size guide: five sizes, two pack counts
| Size (W×H+gusset) | Typical fill | Often used for |
|---|---|---|
| 12×22+8 cm | 200–250 g | 250 g coffee, granola, loose tea |
| 14×24+8 cm | 250–340 g | 340 g coffee, seeds, nuts |
| 16×26+8 cm | 450–500 g | 500 g coffee, 400 g snacks |
| 18×28+8 cm | 500 g–1 kg | 1 kg rice, pet treats, bulk tea |
| 20×30+8 cm | 1–1.2 kg | Food-service refills, 1 kg coffee |
Fill weight depends on density, and the window band gives you a free check: at the working weight the product should sit inside the band. If the fill line lands well above it the bag is oversized and the front will look empty; if the product sits below the frame the window shows nothing. Order one 50-pc pack in two candidate sizes and fill both before committing to a printed run.
Filling, sealing and printing
Stock packs come 50 or 100 pcs per size, unprinted. Open the base squarely, fill to about 75–80% of the bag height, and heat-seal the top flat on an impulse or band sealer with 3–5 mm of clean film. The seal area at the top is plain kraft, which closes more reliably than a film-only edge. Custom printing starts at 500 pcs; the usual layout is a logo and product name on the upper kraft panel, a weight or roast line beneath it, and the brown frame left as the divider. Send artwork with the window position marked so no important element falls behind the opening.
Common questions
Is the window covered or open?
Covered. A clear food-grade film is laminated across the opening, so the product stays sealed in and the window edge cannot tear.
Can the brown frame be a different colour?
On stock packs it is brown. Custom printing from 500 pcs can recolour it, remove it, or turn it into a printed band in your own brand colour.
Will it work for freshly roasted coffee?
The barrier suits coffee that has rested a few days. Packed within 48 hours of roast with no valve, the bag will balloon as CO₂ escapes — for same-day packing use a valve bag instead.
Is the lining real aluminium foil?
No, it is a metallised film. It blocks light and slows moisture and oxygen transfer, but a true foil laminate is the stronger barrier when the shelf life demands it.
Want a larger, unframed opening instead? The window kraft eight-side-seal bag has a full rectangular cut-out. For fill weights across formats see the coffee bag size guide, or browse the rest of the kraft range.
Specifications
Material: Natural kraft paper with inner barrier lining, food-grade and heat-sealable.
Packing: bulk packs, factory direct.
| Size | Color | Price (USD) | Availability |
|---|---|---|---|
| 12×22+8cm / 100pcs | Assorted | $14.81 | In stock |
| 14×24+8cm / 100pcs | Assorted | $18.06 | In stock |
| 16×26+8cm / 100pcs | Assorted | $20.83 | In stock |
| 18×28+8cm / 100pcs | Assorted | $24.07 | In stock |
| 20×30+8cm / 100pcs | Assorted | $28.70 | In stock |
